Novelda X4 System on Chip (SoC)
- Ultra-Wideband Impulse Radar
- Analyzes Time of flight, phase shift, signal strength
- Compliant with UWB worldwide regulations
- 3rd gen UWB SoC, 13 patents granted or filed

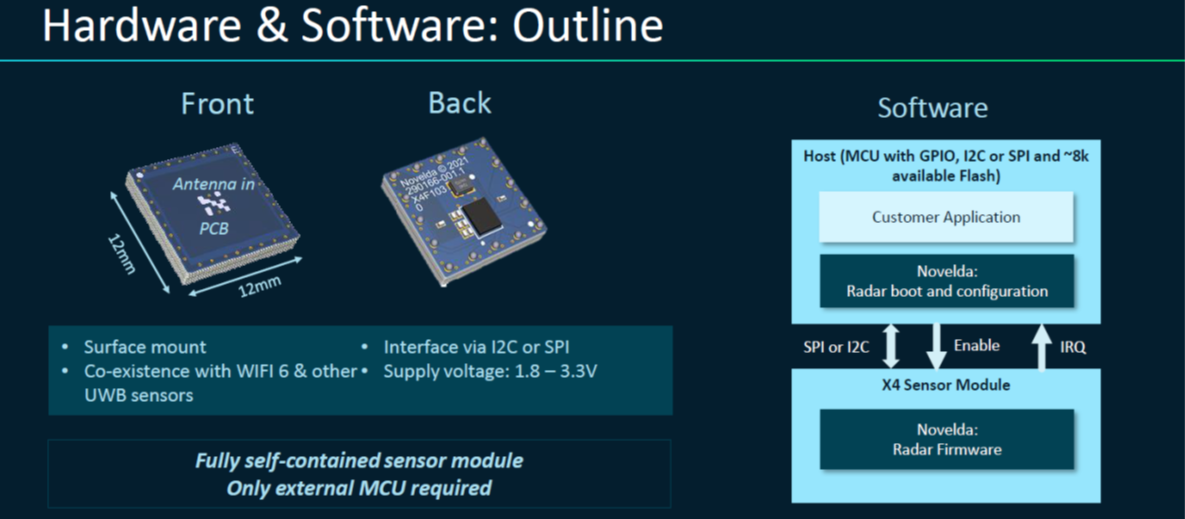

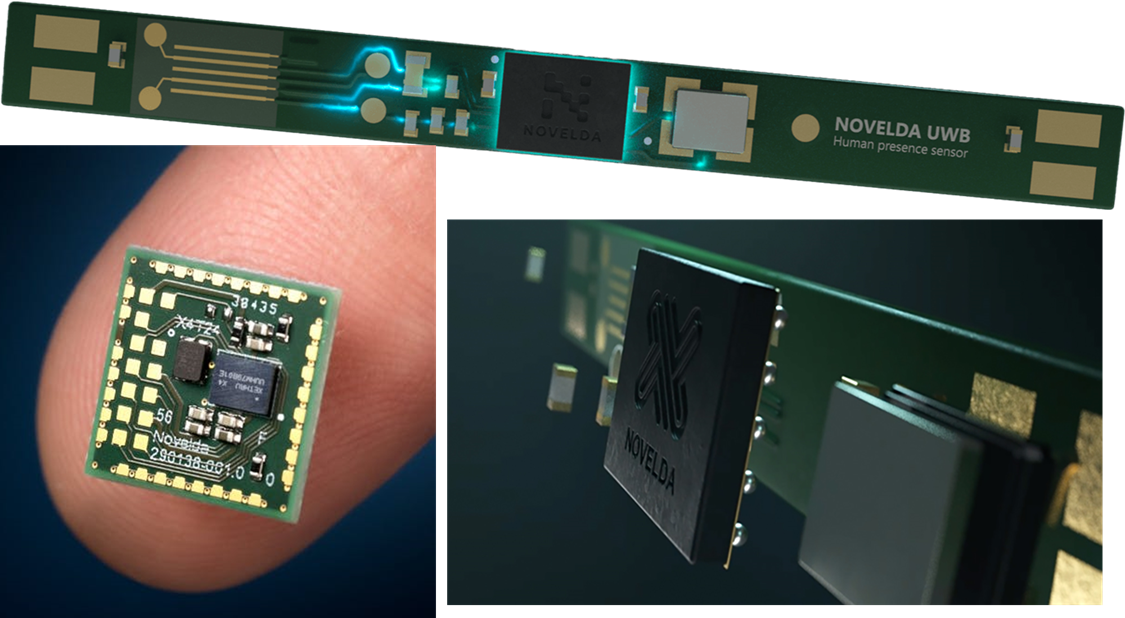

Novelda Human Presence Sensor
- Novelda X4 SoC
- Antenna
- Detection algorithms
- Input / Output
Key features of NOVELDA UWB Proximity Sensor
- Instant and robust detection.
- Wide & Configurable detection zone – avoids detection outside zone
- Entirely hidden in the product – senses through plastic and glass.
- Easy to integrate – suitable for the pick-and-place process.
- Suitable for outdoor use with consistent detection in difficult weather.
- Wide & configurable zone – avoids detections outside the zone.
- Detection capabilities like major motion (walking), minor motion (arm moving), and working motion like sitting, or typing on the keyboard.
- Detection latency for No presence / presence of < 0.25s.
- Power consumption of < 20mW.
One application with Novelda UWB Occupancy Sensor is for lighting. Light instantly turns on when a person enters, stays on even while the person sits still, and the light turns off shortly after the user leaves.
A few Key Benefits are fewer false positives with a configurable detection zone, no detection outside the zone, sensors do not disturb each other, and fewer false negatives and detect people sitting still.
For more information Click https://novelda.com/
