Base Feature Attributes:

  • Hidden Door Open Ambient Light Ring Around Bezel
  • High Intensity Reading Light.
  • Dead Font Graphics.
  • Controls – Capacitive Anti Slip Touch Feed Back.
  • Configurable Indicator Graphics with Piano Black Bezel.
  • CAN / LIN interface with Body Control Module.
  • Upgradeable Control Module for Flexible Communication w/BCM.
  • Quick Connect Connectivity to Reduce on Line Assembly Time.
  • 3D Styling – Depth Reduction to < 10 mm through Flexible Hybrid Electronics
  • Graphic light changes from White to Blue upon activation

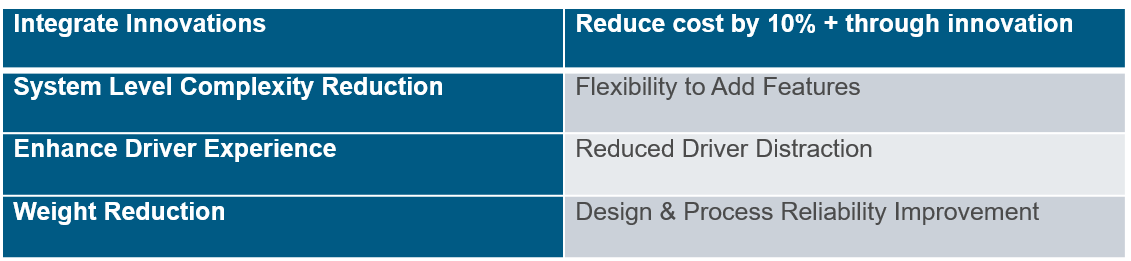

This is design development process to present design for next generation Overhead Console for low volume luxury cars that help meet cost target at acceptable EER&D costs.

285

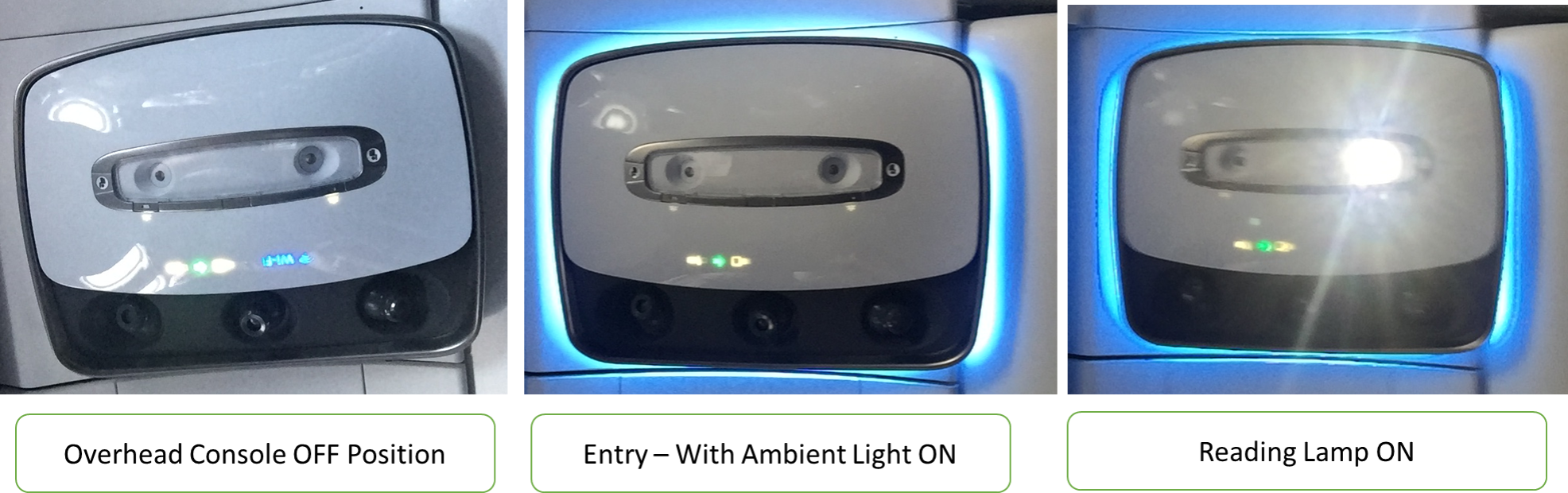

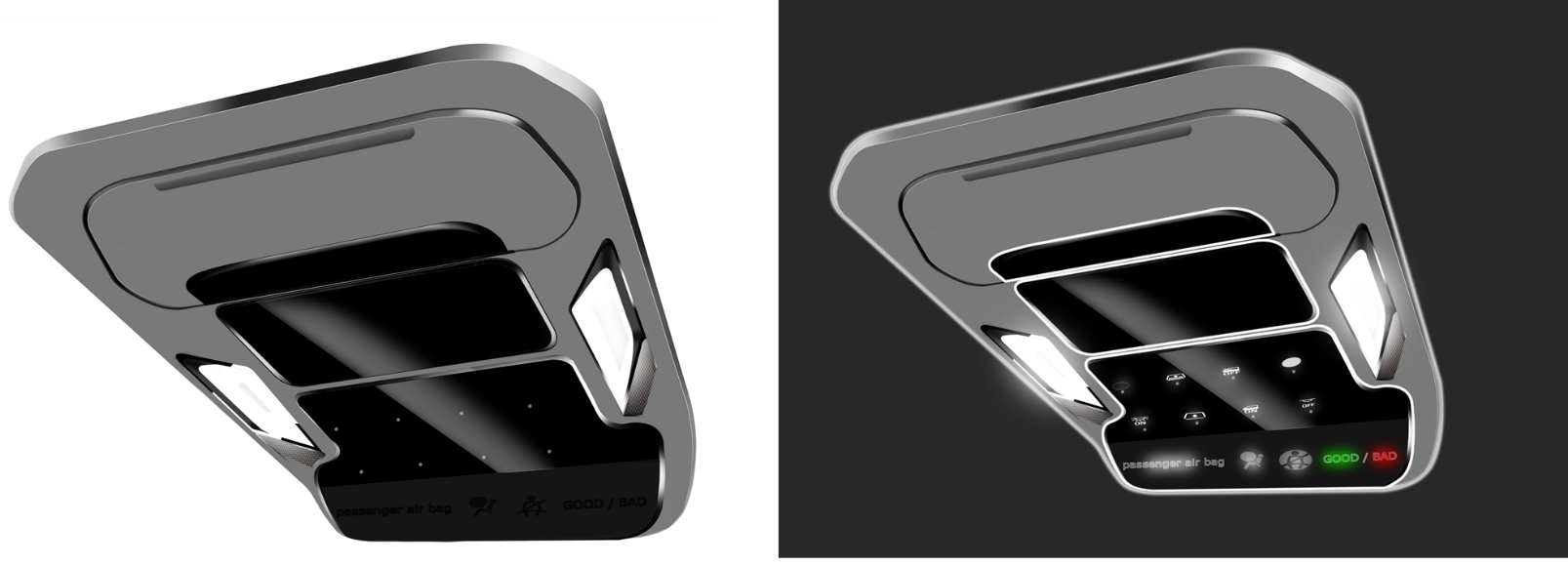

Base Feature Attributes:

  • Hidden Door Open Ambient Light Ring Around Bezel
  • High Intensity Reading Light.
  • Dead Font Graphics.
  • Controls – Piezo Anti Slip Touch Tactile Feed Back.
  • Configurable Indicator Graphics with. Piano Black Bezel.
  • CAN / LIN interface with Body Control Module.
  • Upgradeable Control Module for Flexible Communication w/BCM.
  • Quick Connect Connectivity to Reduce on Line Assembly Time.
  • 3D Styling – Depth Reduction Through Flexible Hybrid Electronics.

286

Easy Feature Adds:

  • Sun Glass Holder – Luxury and Standard.
  • Air Quality Sensor.
  • Child Sensor
  • Temperature Adjustable Dome Light for 95% CRI Index.
  • Garage Door Opener.
  • Easy Access Ambient Light RGB Controller.
  • Rear Seat Conversation Mirror.
  • HUD Projector, Microphone and Front facing Camera
  • Integrating Powered Rear View Mirror

287

Recommend you check on the site regularly for design updates. Few companies who may be helping in this development:

  1. Microchip Electronics.
  2. OSRAM
  3. CQREBO
  4. DuPont with their In-Mold Electronics technology.
  5. Abatek Polyform technology.

For more information please contact designhmi@gmail.com



Further design development to the fully integrated thin 3D profile Overhead Console provided as below:

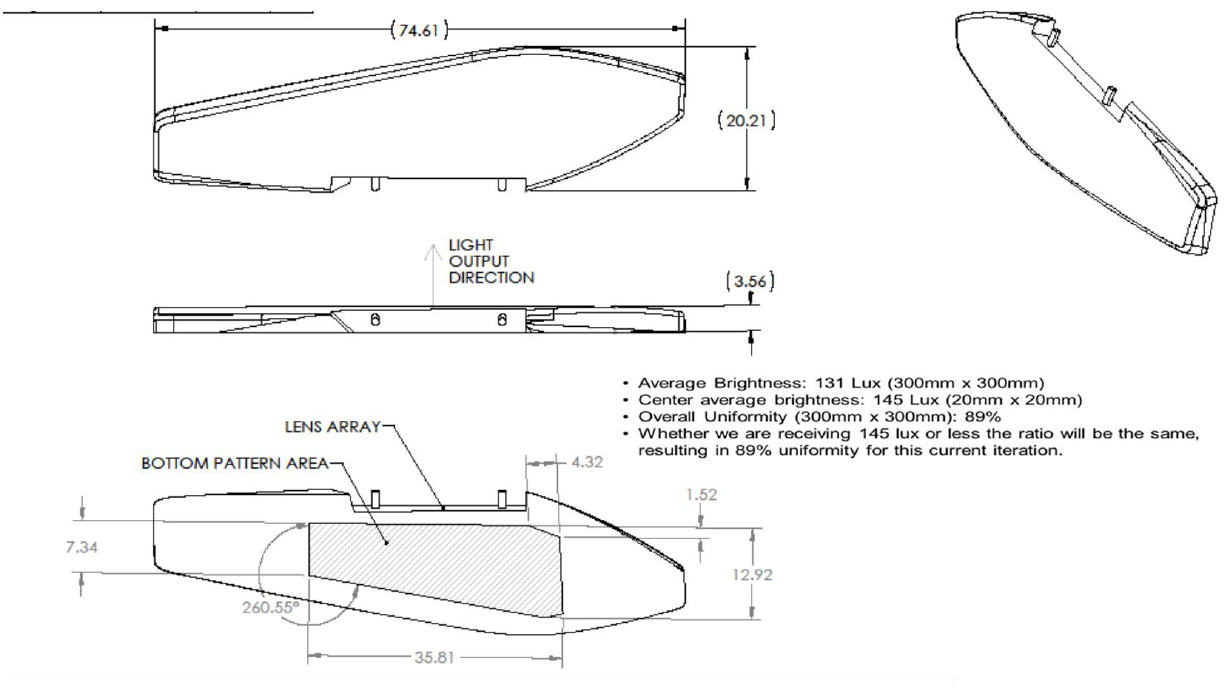

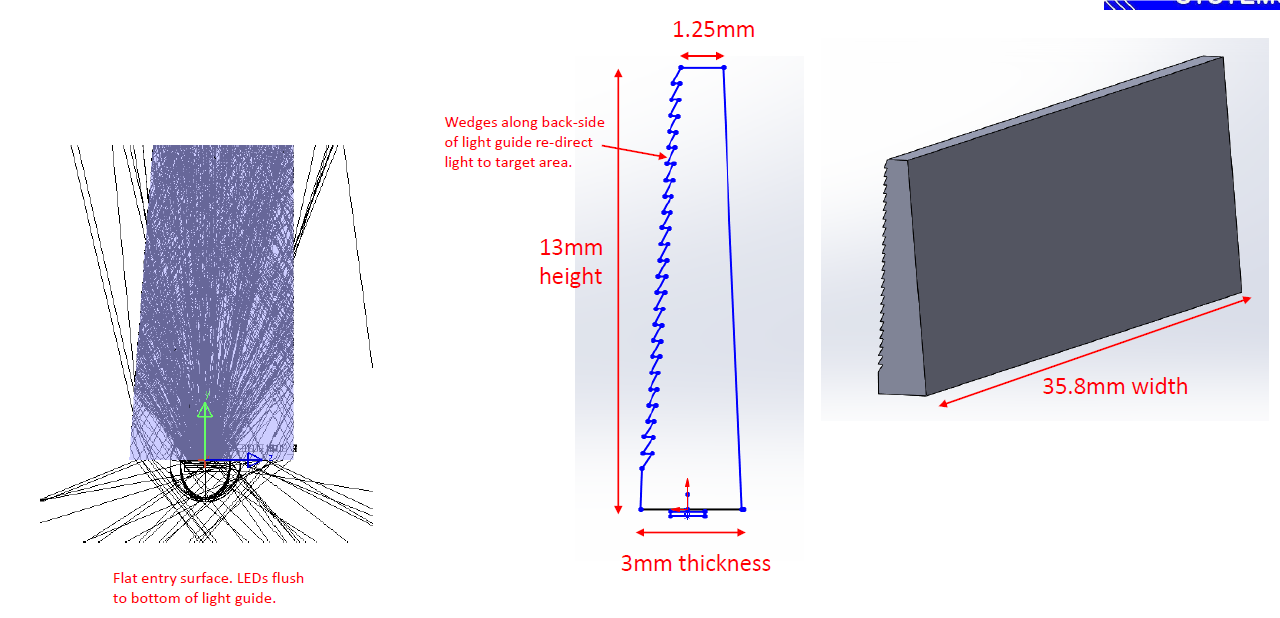

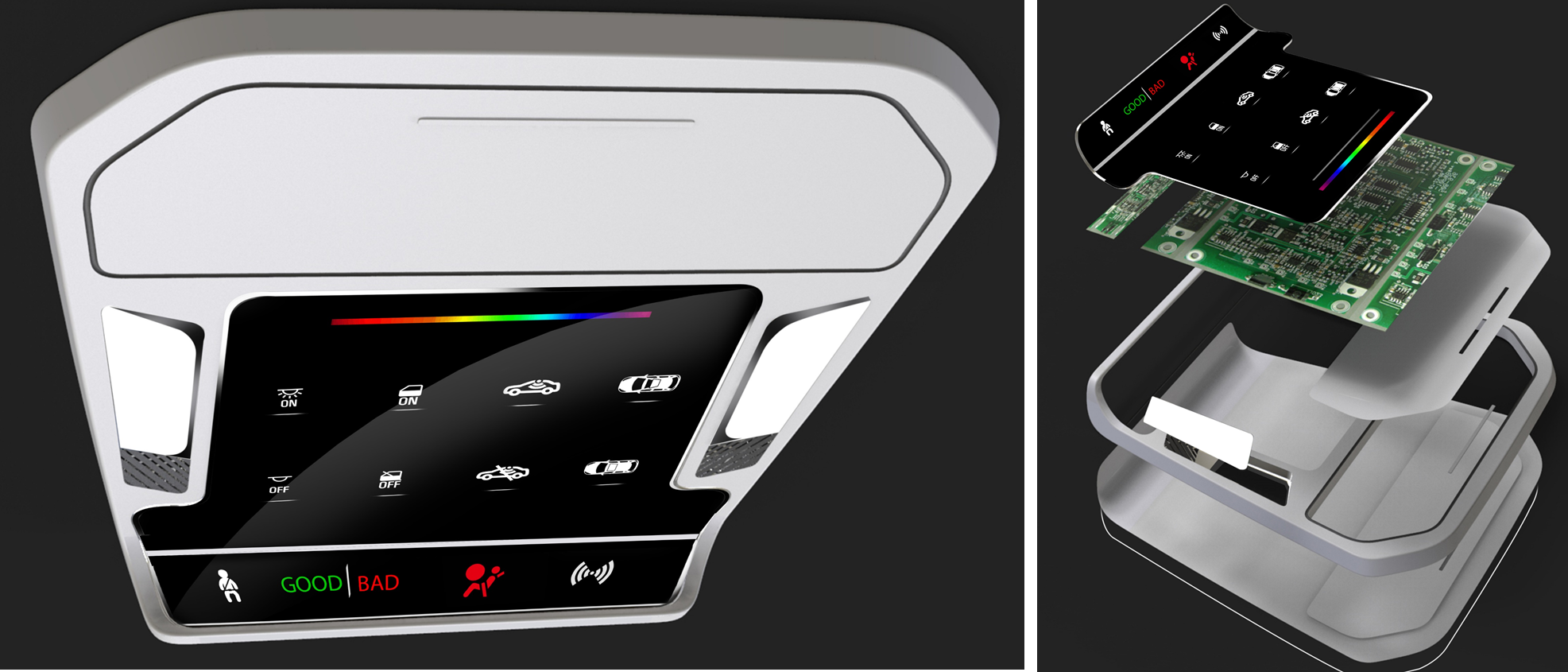

  1. Sectional CAD view.

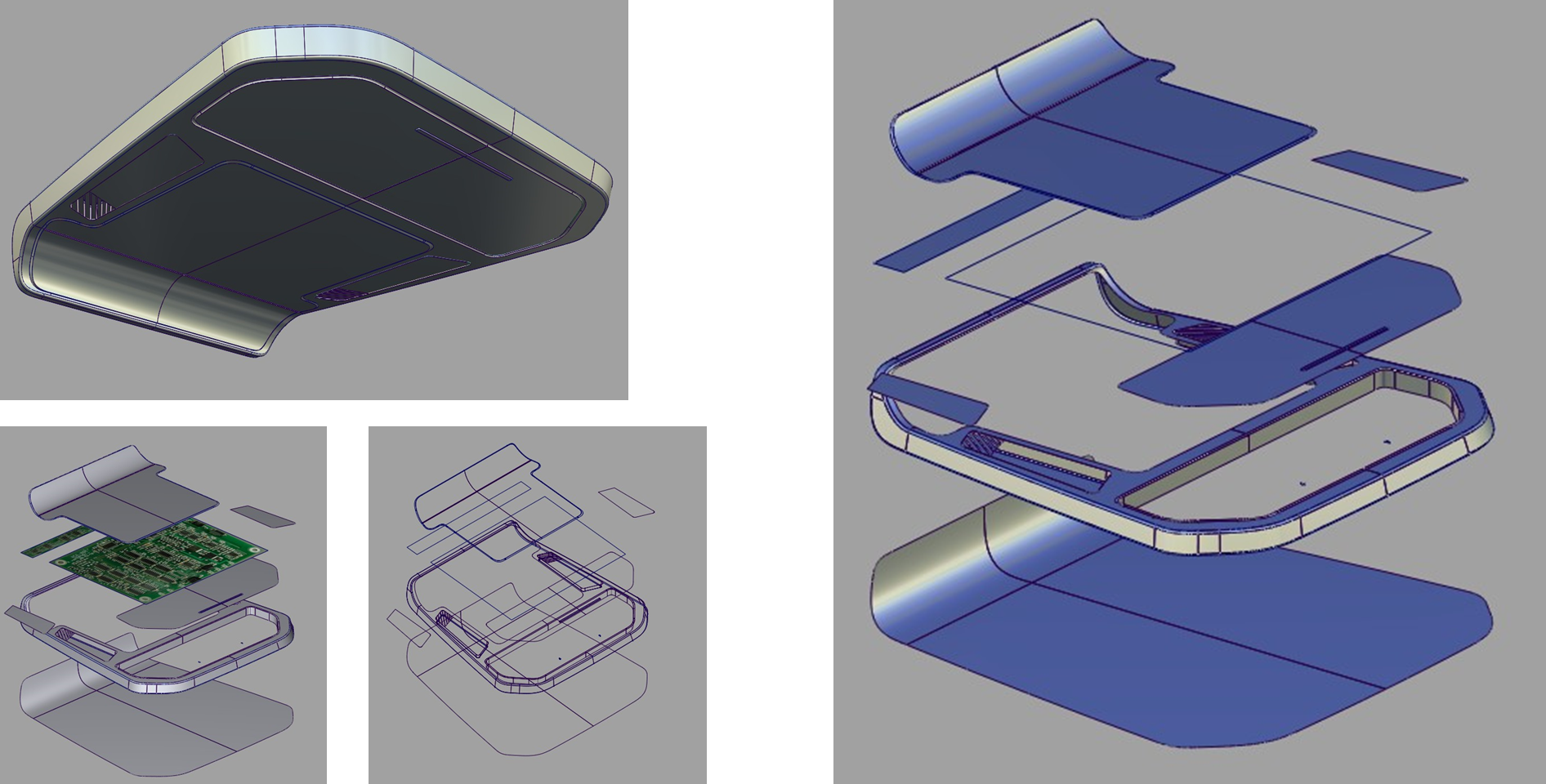

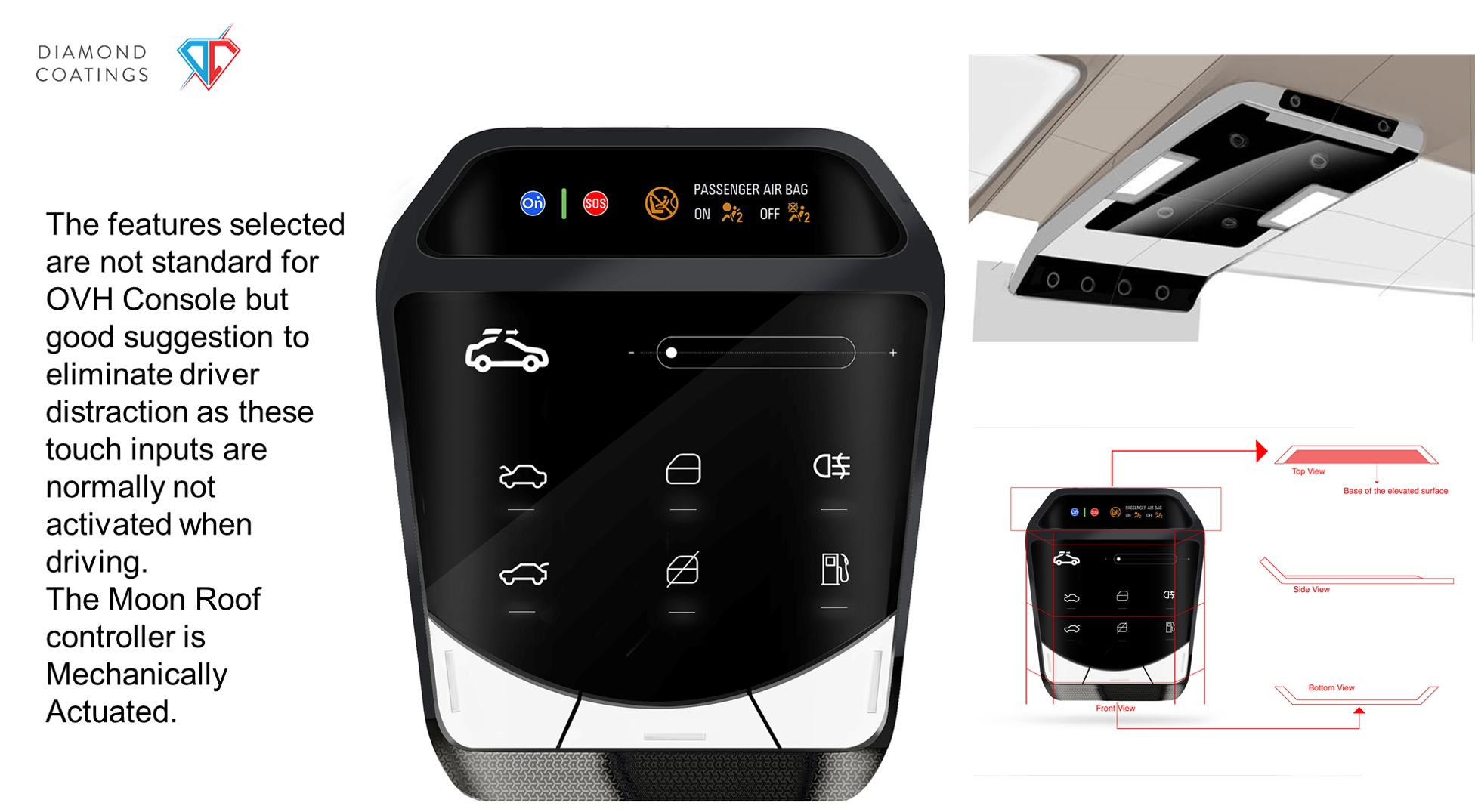

  2. Solids from initial 3D development

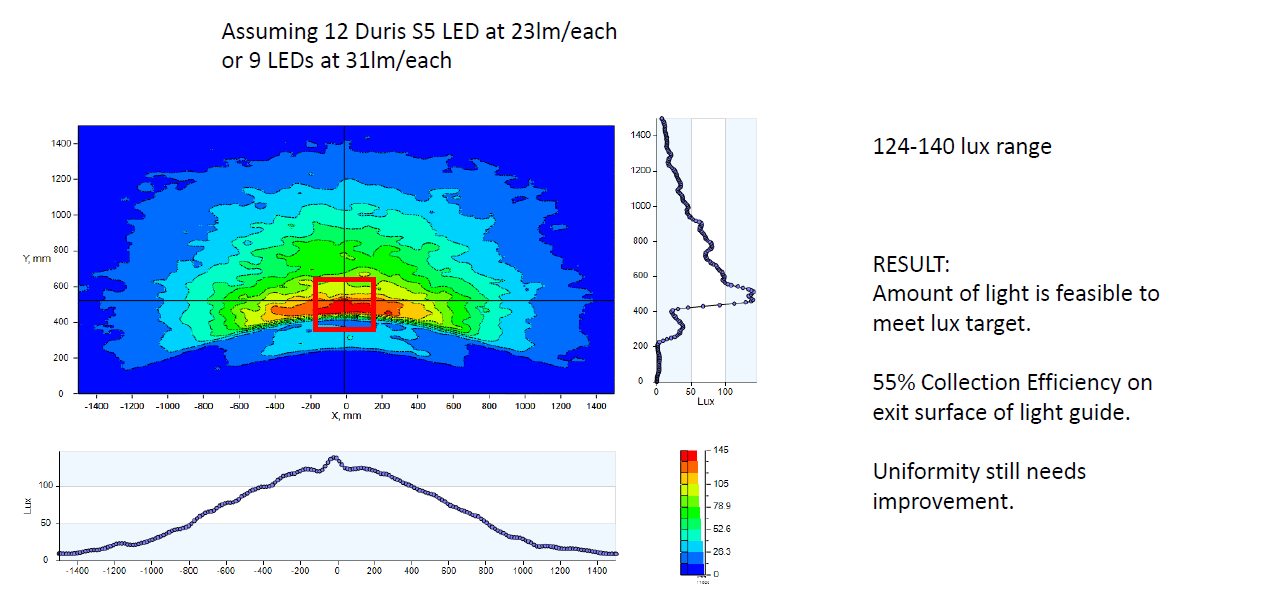

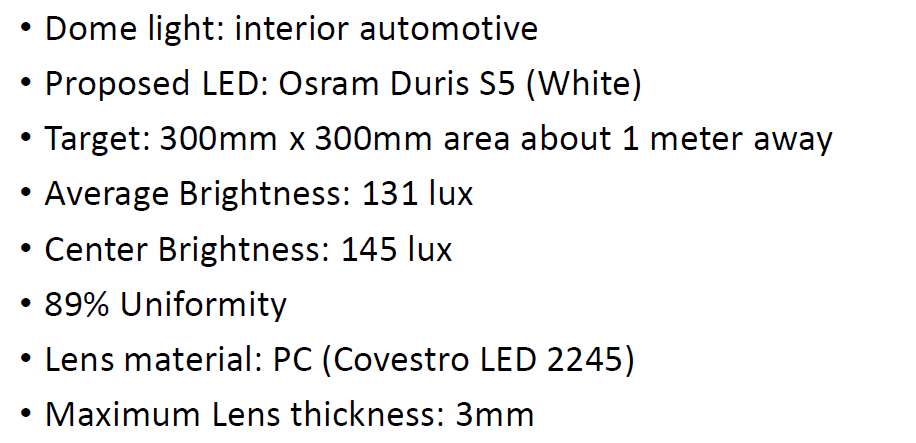

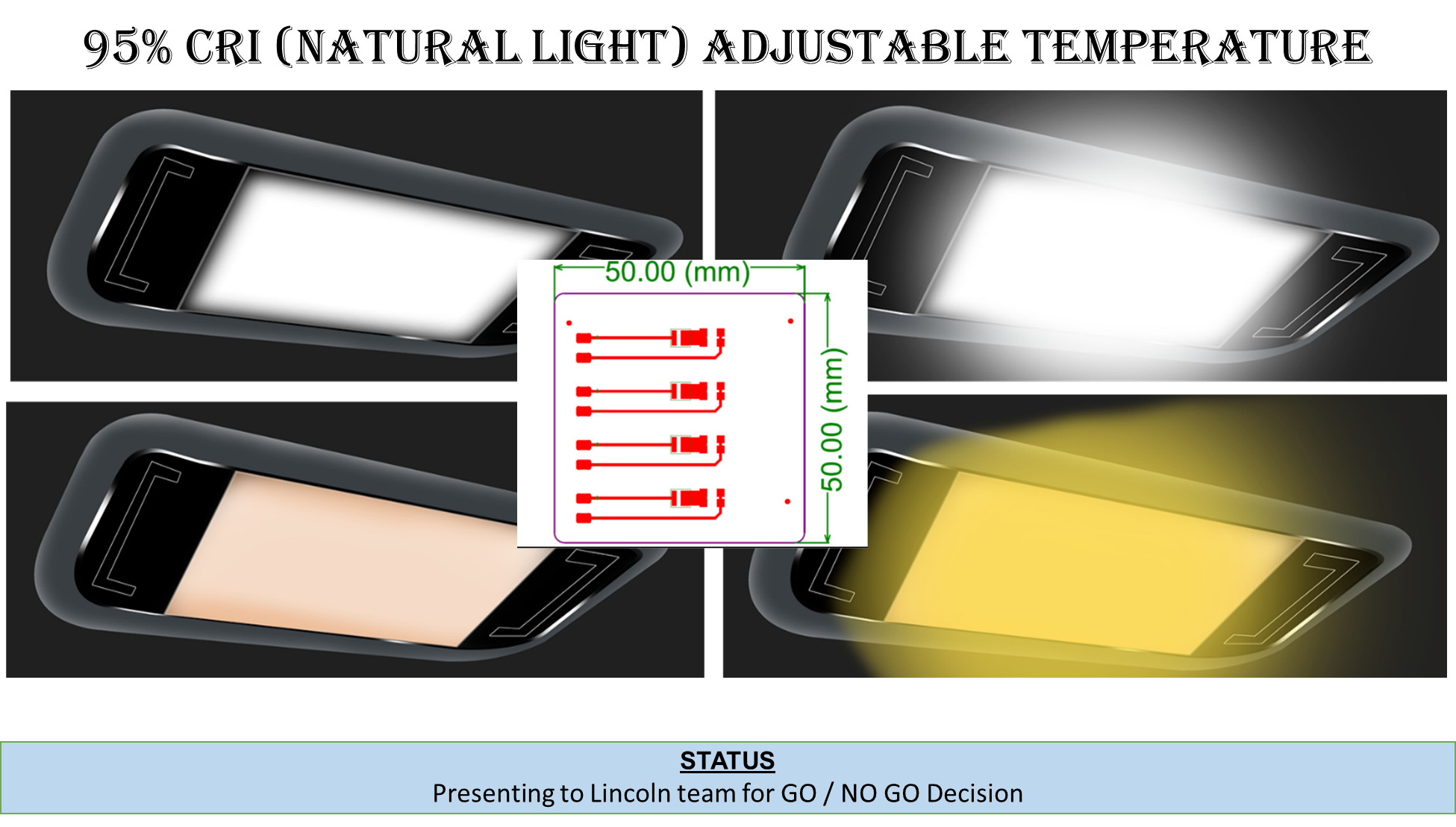

  3. Adjustable reading lamp to meet 95% natural light CRI Index.

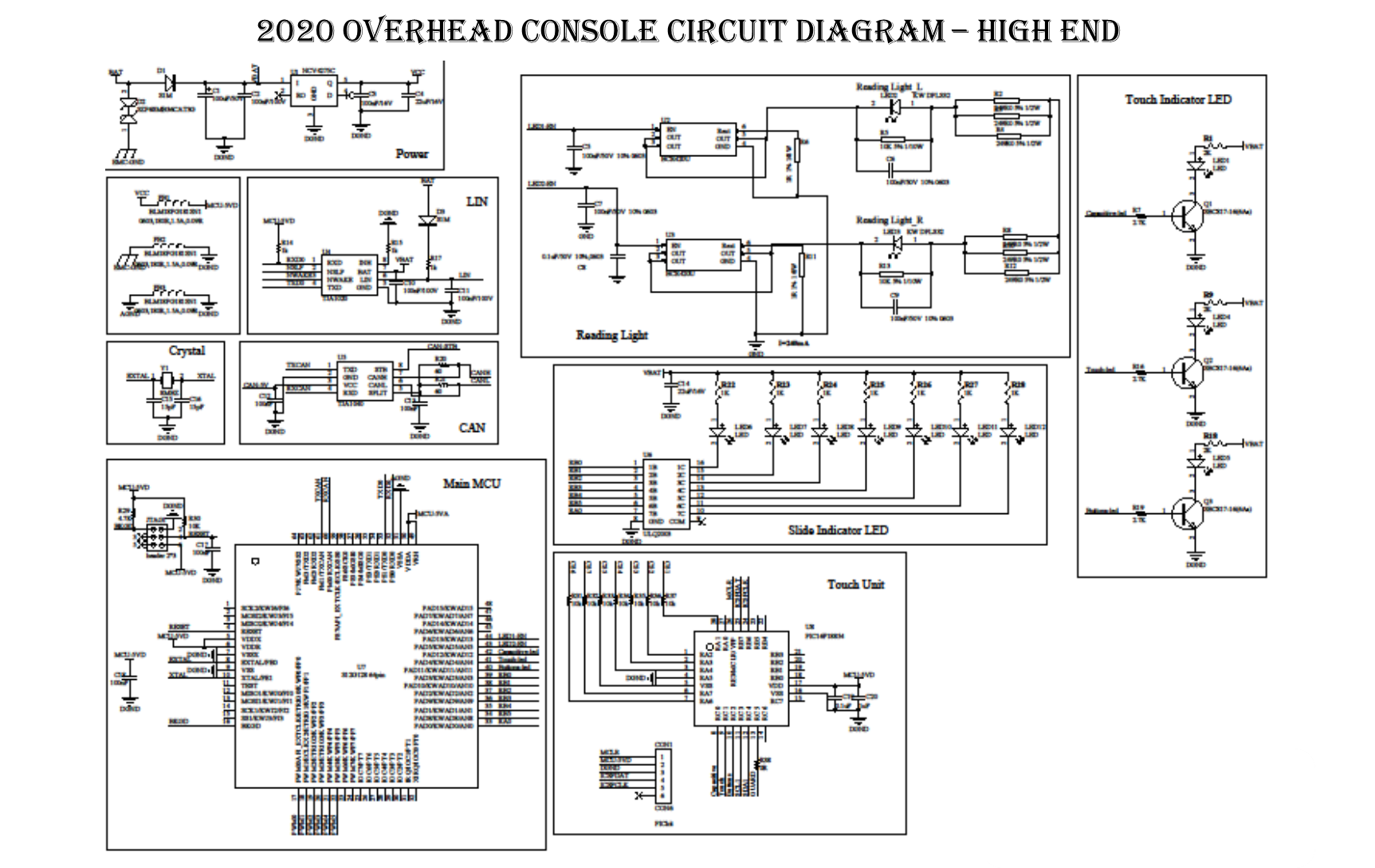

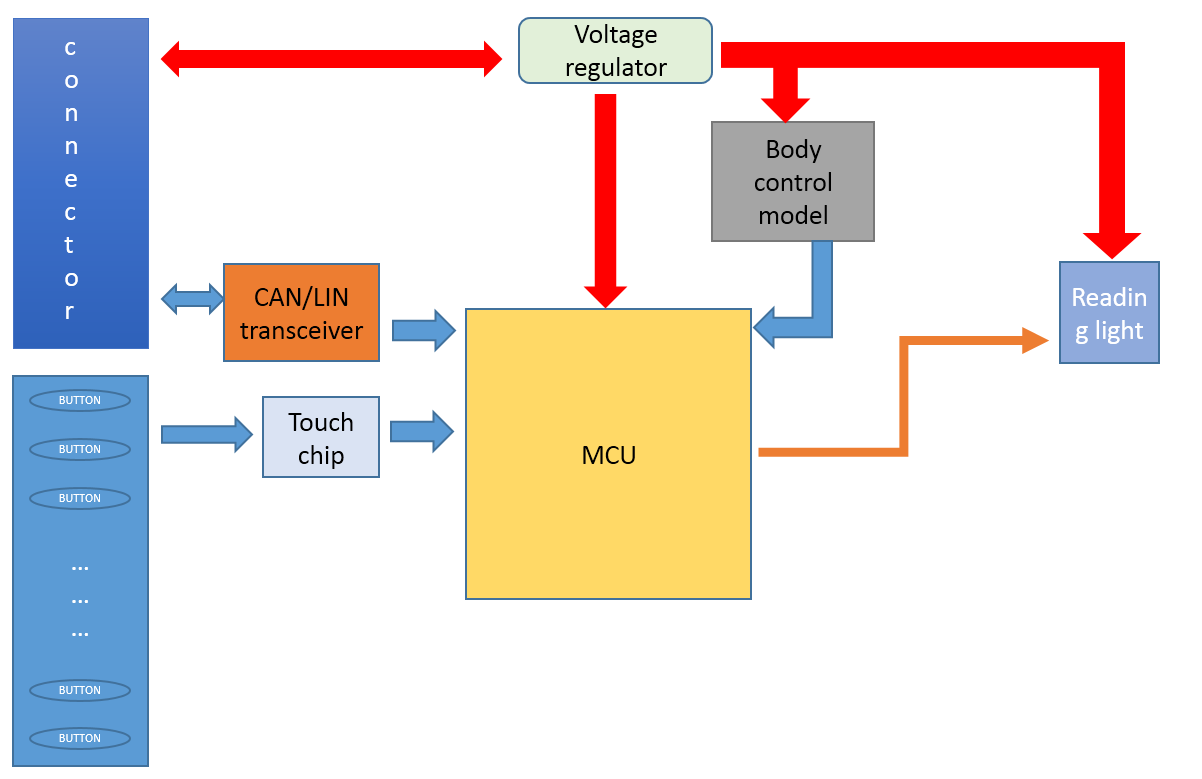

  4. DRAFT circuit diagram.

339340341342

CoreLED Overhead Console Reading Lamp Design

Global Lighting OVH Reading Lamp Design
