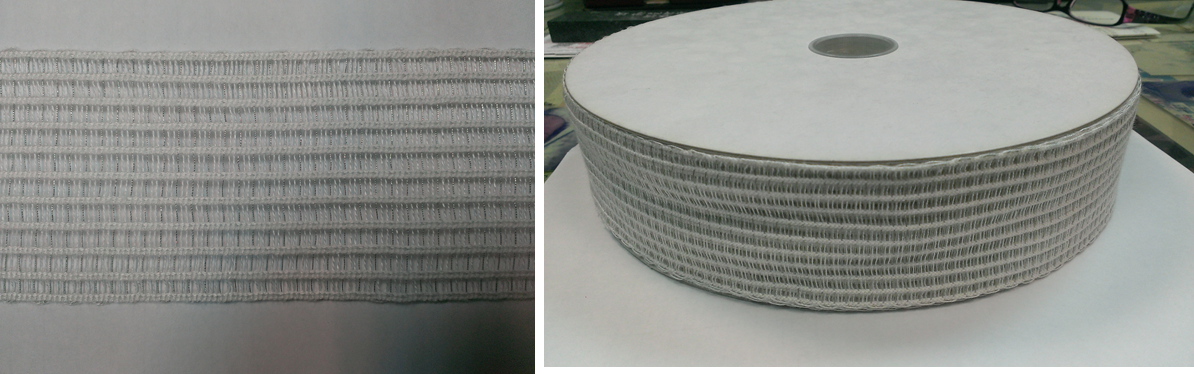

This Heating Textile is a new generation electrical heating system which is specially designed for mobile heating, energy saving and safety orientated requirements with DC power. The Ultra Heating Fabric adopts an advanced smart textile technology. A patented Metal Conductive Yarn is introduced to the Fabric. The conductive yarn is very fine (the most fineness can go to 0.27 mm diameter in present commercial grade) and strong. The conductive yarn can be easily enhanced in conductivity, strength, and thermal resistance in our advanced design system to meet customer requirements. The metal conductive yarn is perfectly integrated with the Fabric by textile processes. Hence, the Heating Textile is superior soft, light, thin and strong. The most importance is the Textile can relate to connector or cable by traditional electrical skills, and the connection has higher reliability and yield rate than carbon fiber or metal plating polymer yarn which is widely used as the heating elements.
- USB Drive with 5V (Computer/ power bank can drive it quickly).

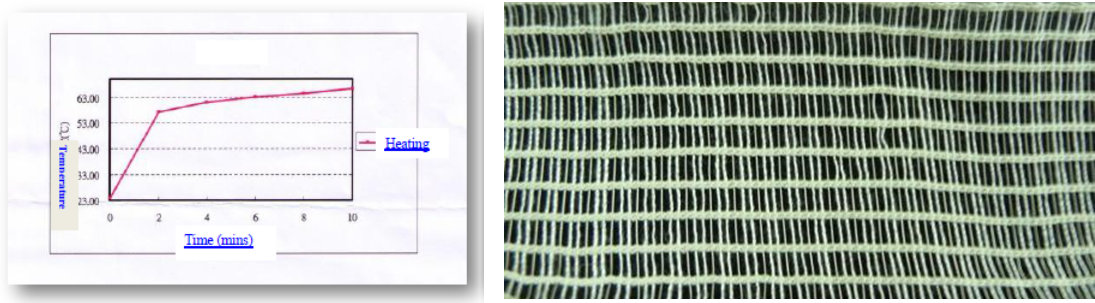

- Raise to desired temperature in 5 seconds.
- DC power, safe, no electromagnetic.
- Resist to rubbing and squeezing.
- No production loss.
- Even and stable heating temperature
- Easy to proceed /use
- Lower cost
- Reach & RoHS
- Green material, low energy consumption.
Current in market wire heating elements have certain disadvantages as heating element cannot be welded directly to cable or PCB, material property of the heating element is fragile so hence an extra safety solution is required and most of manufacturers proceed the layout of the heating element by handwork or by expensive equipment.
On the other hand, this is a heating fabric. Thus, the layout is very light and flexible and can resist complicated stresses. It can be welded directly with cable or PCB, and do not need any extra welding and safety solution.
Fabric can be connected with connector or cable by traditional electrical skills, and the connection has higher reliability and yield rate than carbon fiber or metal plating polymer yarn which is widely used as the heating element.
For more Information Contact:
